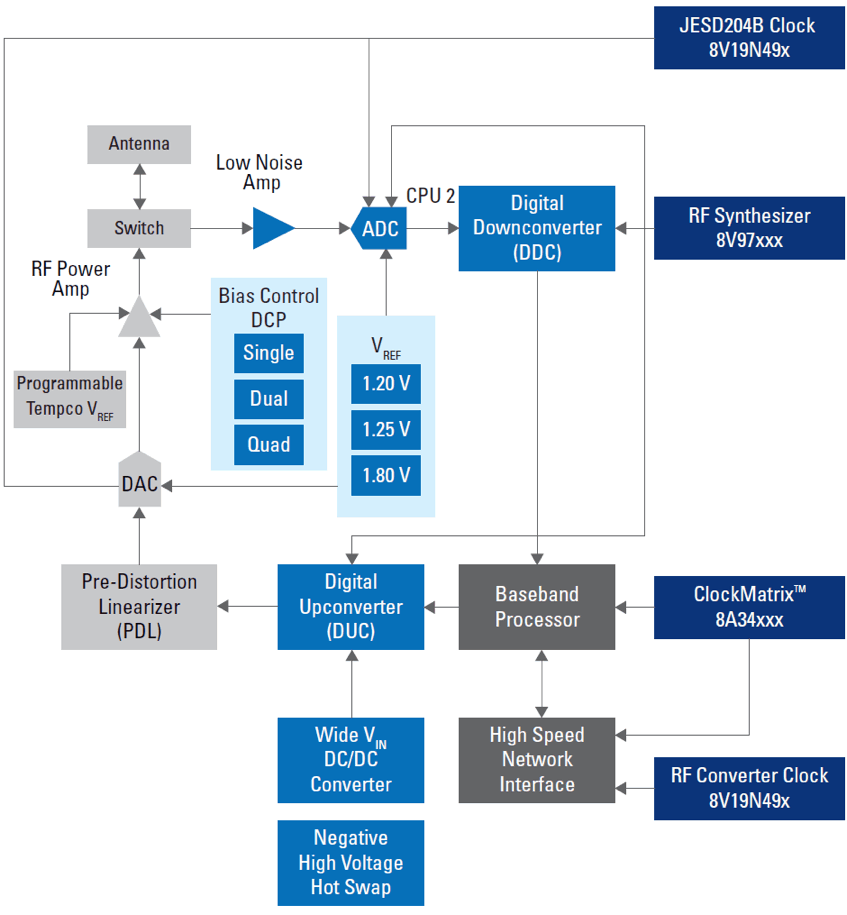

Cellular Base Station

The increased amount of data and video being transmitted via the cloud has placed huge bandwidth and power demands on the entire infrastructure market.

The combination of a wide range of bias control DCPs, voltage references, digital converters, and highly integrated and industry-proven timing tree solutions addresses the needs of these modern systems.

Target applications include base station radio cards, remote ratio units, baseband units, satellites, and microwave communication links.

Key Features

Lowest phase noise, which maximizes signal-to-noise ratio from converters and enables the best radio performance
Broad frequency range allows design portability to support existing 4G and future 5G standards as well as mmWave massive MIMO radios
Extremely low skew drift capability, making it ideal for beamforming applications
State-of-the-art solutions for 5G, with up to 18GHz LO output frequency with leading phase noise, low phase skew drift for AAS/beamforming, and cTE < 5ns for network equipment

Recommended Product

Digital Downconverter

HSP50216 ( Four-Channel Programmable Digital Downconverter ) Datasheet

Digital Upconverter

ISL5217 ( Quad Programmable Upconverter ) Datasheet

Voltage Reference

ISL60002BIH31x Series ( Precision Low Power FGA Voltage References ) Datasheet

DC/DC Converter

ISL9305 ( 3MHz Dual Step-Down Converters and Dual Low-Input LDOs with I2C Compatible Interface ) Datasheet
ISL9305H ( 3MHz Dual 1.5A Step-Down Converters and Dual Low-Input LDOs with I2C Compatible Interface ) Datasheet
ISL9307 ( 3MHz Dual 1500mA Step-Down Converters and Dual Low-Input LDOs ) Datasheet

Negative High Voltage Hot Swap

ISL6150 ( Negative Voltage Hot Plug Controller ) Datasheet

Analog to Digital Converter

ISLA112P50 ( 12-Bit, 500MSPS A/D Converter ) Datasheet

Clock Generator

8A34 Family ( ClockMatrix™ multichannel digital PLL )

RF Synthesizer

8V97xxx Series ( RF Synthesizers & PLLs )

RF Converter Clock

8V19N49x Series ( RF converter clocks & generators )
